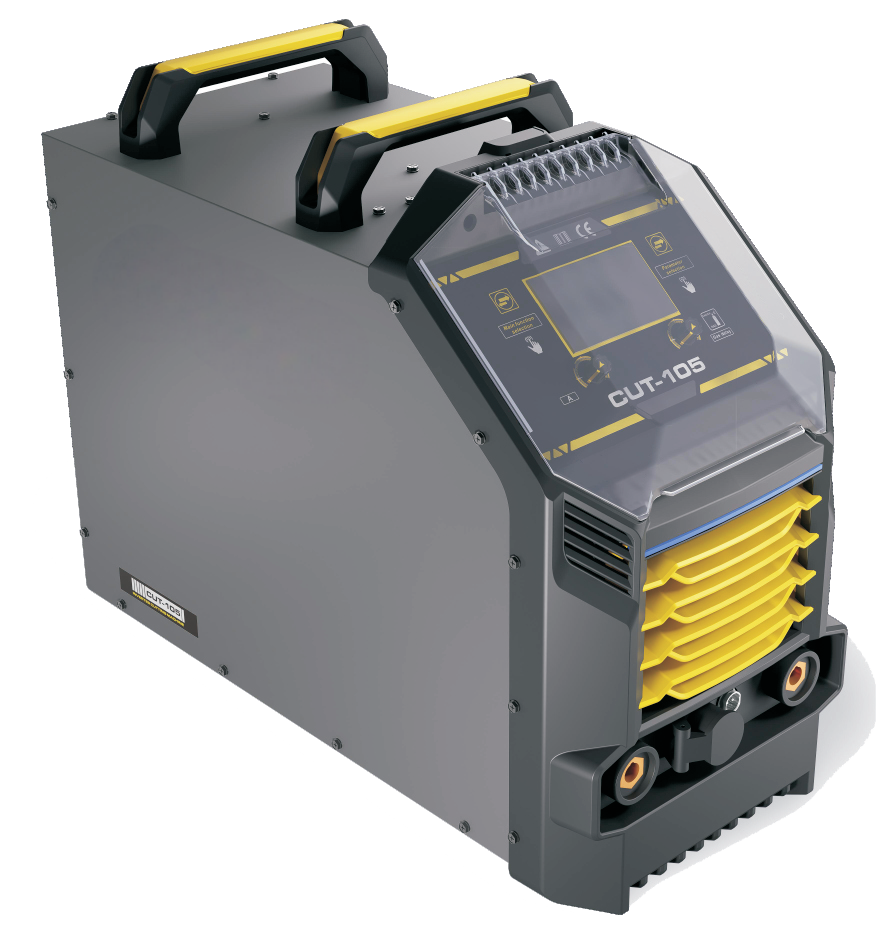

CUT-105
| Model | CUT-105 |
| Power supply voltage(V) | 3~380 |
| Powerfrequency(Hz) | 50/60 |
| Effective current(A) | 26.5 |
| Rated input current(A) | 26.5 |
| Rated input power(KW) | 18.4 |
| Duty cyce 40℃ 10min | 100% |
| No load voltage(V) | 308 |
| Cutting current(A) | 20-100 |
| Efficiency(%) | 88.9 |
| Power factor | 0.73 |
| Severance cut for carbon steel(mm) | ≤55 |
| Production cut(mm) Carbon steel Stainless steel Aluminum Copper | ≤40 ≤30 ≤30 ≤20 |
| Insulation class | F |
| Protection class | IP21S |
| Cooling | AF |
| Net weight(kg) | 29.6 |
| Dimensions(mm) | 580*270*460 |
