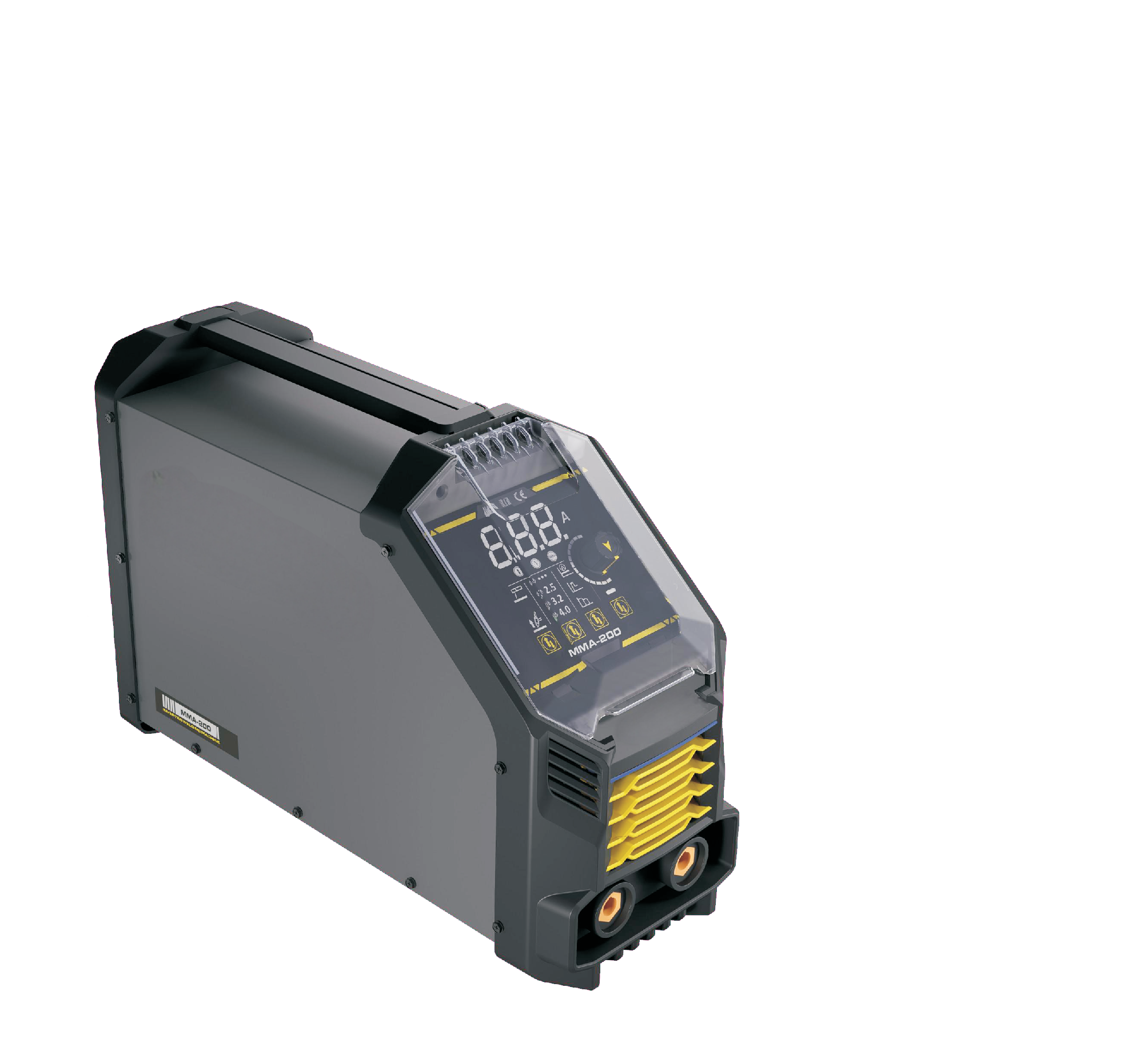

MMA-200
| Model | MMA-200 | |
| Power supply voltage(V) | 1~230 | |
| Powerfrequency(Hz) | 50/60 | |
| MMA | TIG | |
| Effective current(A) | 34 | 23.4 |
| Rated input current(A) | 44 | 30.2 |
| Rated input power(KW) | 10.1 | 7.0 |
| Duty cyce 40℃ 10min | 60%200A 100%155A | |
| Welding current range(A) | 10~200 | |
| No load voltage(V) | 65 | |
| Efficiency(%) | 86.9 | |
| Power factor | 0.64 | |
| Insulation class | F | |
| Protection class | IP21S | |
| Cooling | AF | |
| Net weight(kg) | 6.8 | |
| Dimensions(mm) | 400*155*280 | |
