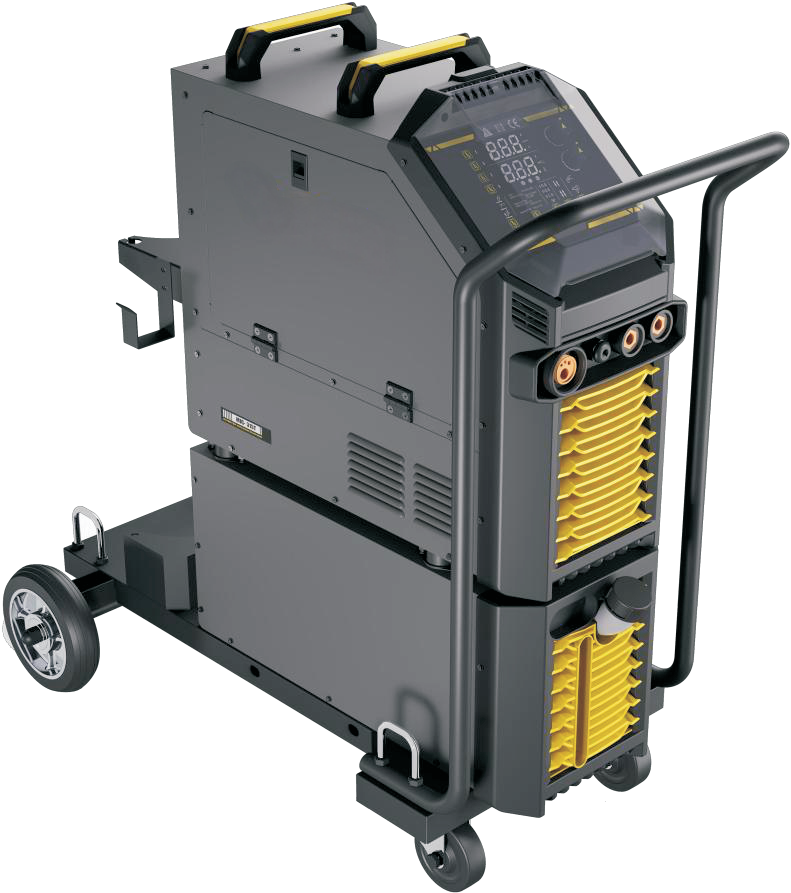

MIG315T
| Model | MIG315T | ||
| Power supply voltage(V) | |||
| Power frequency(Hz) | 3~380 | ||
| Input voltage(V) | 50/60 | ||
| MMA | TIG | MMA | |
| Effective current(A) | 14.2 | 10.8 | 11.7 |
| Rated input current(A) | 22.5 | 17.0 | 18.5 |
| Rated input power(KW) | 15.6 | 11.8 | 12.8 |
| Duty cycle 40℃ 10min | 40%315A 60%260A 100%200A | 40%300A 60%245A 100%190A | 40%250A 60%205A 100%160A |
| Welding current range(A) | 30-315 | 10-300 | 10-250 |
| Welding voltage range(V) | 15.5-29.8 | 10.4-22 | 20.4-30 |
| Wire feeding speed(m/min) | 1.5-18 | - | - |
| No load voltage(V) | 75.5 | 71.5 | 75.5 |
| Efficiency(%) | 88.7 | ||
| Power factor | 0.68 | ||
| Insulation class | F | ||
| Protection class | IP21S | ||
| Cooling | AF | ||
| Net weight(kg) | 52 | ||
| Dimensions(mm) | 620*290*580 | ||
